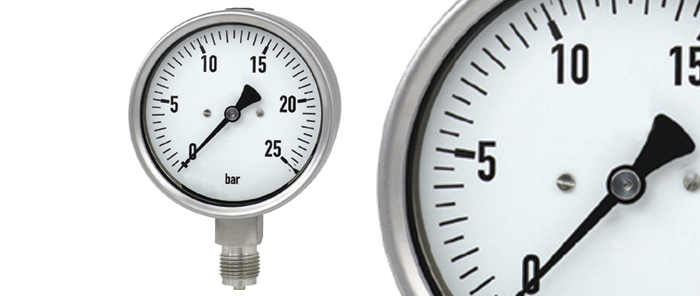

100mm Safety Pattern Pressure Gauge

This Bourdon Tube stainless steel pressure gauge is an ideal choice for measuring pressure values in gaseous and liquid aggressive media in environments where increased safety is required. Built with a solid baffle wall designed in compliance with operational safety requirements of EN 837-1, BS 1780 and ASME B 40.1. It has a clearly visible white dial and a stainless steel case.
  • 1/2” BSPP connection thread
  • Accuracy Class: 1.0
  • All Stainless Steel construction
  • EN 837-1, BS 1780 and ASME B 40.1 compliant
  • 100mm white dial with black pointer
  • Operating temperature of medium: 200°C max (ambient -40°C to +60°C)
  • Working Pressure:
    Steady: Full scale value
    Fluctuating: 0.9 x Full Scale Value
    Short time: 1.3 x Full Scale Value

Enquiry Form

This pressure gauge is available to buy online. However, if you have a particular application that you require advice on or a question relating to this product, please use the form below to contact us. Alternatively please email us with your requirements or call one of our experienced engineers on 01895 252222.
