High Temperature Thermocouple with IP67 heavy duty cast iron head (Type 14)

High Temperature Ceramic Sheathed Thermocouples

  • These ceramic sheathed thermocouple sensors are used for temperature measurement up to 1600°C plus in kilns, furnaces and flues etc
  • These assemblies are available as standard with primary and optional secondary ceramic protective sheaths in a range of diameters of; impervious aluminous porcelain, impervious recrystallised alumina, impervious mullite and silicon carbide
  • Alternatively, we have a large range of sensors available to buy online in various diameters and lengths
  • UKAS calibration is available for our range of Ceramic Sheathed Thermocouple assemblies
  • Assemblies in all the common high temperature thermocouple conductor combinations are available in both simplex or duplex styles
  • Available attachment fittings include adjustable flanges or welded bushes

High Temperature Thermocouple Enquiry Form

1. Thermocouple Type
2. Number of Elements

3. Primary Sheath Material
4. Primary Sheath Diameter
5. Sheath Length below head

 mm
6. Secondary Sheath Material
7. Optional Tube Mounting

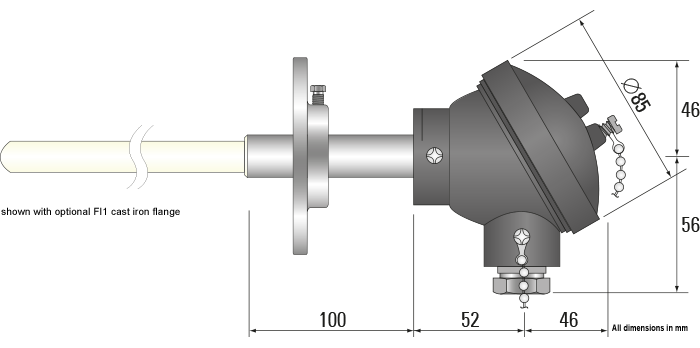

Illustration Select
