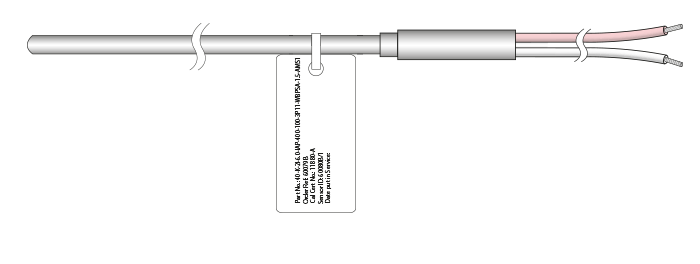

Calibrated Mineral Insulated Thermocouples
Our range of AMS2750 NADCAP, BAC5621 or CQI-9 compliant mineral insulated thermocouples are designed to meet the high quality and accuracies demanded for heat treatment applications within the Aerospace industry. Through careful material selection and a comprehensive calibration program in our ISO17025 UKAS accredited laboratory, we can offer a wide range of sheath diameters and materials from stock with quick manufacture times. Their semi rigid construction allows them to be bent and formed to suit particular applications without impairing performance.

Calibrated in line with AMS 2750 NADCAP, BAC5621 or
CQI-9 requirements
Suitable for use in Temperature Uniformity Surveys (TUS), System Accuracy Tests (SAT), Control Recording and Monitoring and Load sensors

Batch calibration certificate supplied as standard
Sensors are individually tagged and numbered for full traceability
Available in thermocouple types N, K, T and J
Wide range of sheath diameters and materials

Calibration Accuracies:

Code	Standard	Accuracy Supplied	Permitted Applications	Certification
AMS1	AMS2750	±1.1ºC or 0.4% of reading (whichever is greater), end to end deviation of material batch no greater than 1.1ºC	Temperature Uniformity Survey (TUS) System Accuracy Test (SAT) Control, Monitoring & Recording (Class 1 & 2)	An in-house 3-page report for the start/end of batch from 0-1200ºC with all the information NADCAP auditors require (please refer to the Calibration Details section for a detailed explanation). Please note: UKAS calibration is available on request.
BAC2	BAC5621	±1.1ºC <538ºC or 0.4% of reading >538ºC, end to end deviation of material batch no greater than 0.6ºC	Secondary/Field Test Sensor
CQI1	CQI-9	±1.1ºC or 0.4% of reading (whichever is greater), end to end deviation of material batch no greater than 1.1ºC	Temperature Uniformity Survey (TUS) System Accuracy Test (SAT) Control, Monitoring & Recording (Class 1 & 2) Load

Heat Treatment Thermocouple Enquiry Form

1. Thermocouple Type

2. Sheath Material

3. Sheath Diameter

4. Sheath Length

mm

5. Types of Sensing Junction

Illustration	Select
INSULATED Junction
Duplex Element Required? (please tick box)

6. Pot Seal Style

Illustration	Select
Crimp on St./St. Pot Seal (sheath diameters up to 3mm)
Pot Seal with Anti Chafe Spring (sheath diameters up to 3mm)
Crimp on St./St. Pot Seal (sheath diameters 3mm to 8mm)
Pot Seal with Anti Chafe Spring (sheath diameters 3mm to 8mm)
End Seal Temperature Rating: 135°C (standard) 235°C 300°C

9. Optional Connector

Illustration	Select
Standard 2 pin (round) Plug
Miniature 2 pin (flat) Plug
Standard 2 pin (round) Socket
Miniature 2 pin (flat) Socket
Colour Codes available to IEC 60751
Connector Temperature Rating: 220°C (standard) 350°C 650°C

9. Tagging Options

Illustration	Select
Plastic ID Label For use with all end seals up to 70ºC
Laser Etched Metal Tag For use with all end seals above 250ºC
Laser Etching on Sensor Laser etch of serial number. This can be instead of or in addition to either of the options above

10. Calibration Accuracies

Calibration Type	Select
AMS1 - AMS2750
BAC2 - BAC5621
CQI1 - CQI-9

Your chosen calibration is:

AMS1- AMS2750
Accuracy:
±1.1ºC or 0.4% of reading (whichever is greater), end to end deviation of material batch no greater than 1.1ºC
Permitted Applications:
Temperature Uniformity Survey (TUS)
System Accuracy Test (SAT)
Control, Monitoring & Recording (Class 1 & 2)
An in-house 3-page report for the start/end of batch from 0-1200ºC with all the information NADCAP auditors require (please refer to the Calibration Details section for a detailed explanation). Please note: UKAS calibration is available on request.

Your chosen calibration is:

AMS-2 - AMS2750
Accuracy:
±2.2ºC or 0.75% of reading (whichever is greater), end to end deviation of material batch no greater than 1.1ºC
Permitted Applications:
Temperature Uniformity Survey (TUS)
Control, Monitoring & Recording (Class 3,4,5,6)
Load
An in-house 3-page report for the start/end of batch from 0-1200ºC with all the information NADCAP auditors require (please refer to the Calibration Details section for a detailed explanation). Please note: UKAS calibration is available on request.

Your chosen calibration is:

BAC2 - BAC5621
Accuracy:
±1.1ºC <538ºC or 0.4% of reading >538ºC, end to end deviation of material batch no greater than 0.6ºC
Permitted Applications:
Secondary/Field Test Sensor
An in-house 3-page report for the start/end of batch from 0-1200ºC with all the information NADCAP auditors require (please refer to the Calibration Details section for a detailed explanation). Please note: UKAS calibration is available on request.

Your chosen calibration is:

CQI1 - CQI-9
Accuracy:
±1.1ºC or 0.4% of reading (whichever is greater), end to end deviation of material batch no greater than 1.1ºC
Permitted Applications:
Temperature Uniformity Survey (TUS)
System Accuracy Test (SAT)
Control, Monitoring & Recording (Class 1 & 2)
Load
An in-house 3-page report for the start/end of batch from 0-1200ºC with all the information NADCAP auditors require (please refer to the Calibration Details section for a detailed explanation). Please note: UKAS calibration is available on request.

11. Calibration Standard

12. Report Type

Details	Select
Standard 3 Page Report An in-house 3-page report for the start/end of batch from 0-1200ºC with all the information NADCAP auditors require (please refer to the Calibration Details page for a detailed explanation)
Custom Report As the Standard Report but with your choice of range and interval

Your chosen Report Type is:

An in-house 3-page report for the start/end of batch from 0-1200ºC with all the information NADCAP auditors require (please refer to the Calibration Details page for a detailed explanation).

Your chosen Report Type is:

A Custom Report
Please enter the calibration range:
Please enter the calibration interval:

13. Quantity Required

Qty Required

Contact Details

Company Name

Your Name

Title/Dept.

Email

Telephone

Additional Information

If your enquiry is for more than one style of sensor, please email us with your requirements or use the box below

Send Enquiry

We will only use your email address to contact you. We will never give your email address to 3rd parties and we do not sell data on to any other company. We prefer to concentrate on making quality temperature related products. Our privacy policy can be viewed here.

Products

Contact Us

About TC

FREE Guide

Privacy Policy

Terms and Conditions

Sitemap

FREE Wallchart Guide to
Thermocouples and RTD Sensors

Join over 500,000 engineers and buyers who have already received our FREE 74 page A3 Guide to Thermocouple and Resistance Thermometry

Company Name		Address 1
Your Name		Address 2
Title / Dept.		County / Region / State
Email		Postcode / ZIP Code
Telephone		Country

Company Name

Your Name

Title / Dept.

Address 1

Address 2

County / Region / State

Postcode / ZIPCode

Country

Telephone

We will only ever use the information you provide to occasionally contact you regarding our products and we will never disclose your details to a third party. Please see our privacy policy for more details.

I agree to the terms and conditions listed in the Privacy Policy

Thermocouple Sensors

Platinum Resistance Thermometers

Cable

Miniature Thermocouple Connectors

Standard Thermocouple Connectors

Instrumentation

Temperature Accessories

Calibration

Pressure

1	Thermocouple Type	Temperature Range (continuous)	Temperature Range (short term)
N	Nicrosil vs Nisil	0°C to +1200°C	-270°C to +1300°C
K	Nickel Chromium vs Nickel Aluminium	0°C to +1100°C	-180°C to +1350°C
T	Copper vs Constantan	-185°C to +300°C	-250°C to +400°C
J	Iron vs Constantan	+50°C to +700°C	-180°C to +750°C
Temperature ranges refer to the thermocouple type. The temperature range of the sensor may deviate from the above, please refer to the product description for more details

2	Sheath Material	Max. Temperature
600	Inconel 600	1100°C
114	Nicrotherm D^TM	1250°C
310	310 Stainless Steel	1100°C
321	321 Stainless Steel	800°C

INSULATED
Hot junction insulated from sheath. Gives floating output with typical insulation resistance in excess of 100 megohms

Assemblies with pot seals are supplied with short tails as shown. However, where leads are several metres or more long, it is more suitable to have an overall sheathed cable. We recommend the following cables, which are 7/0.2mm, laid flat and overall sheathed constructions. Other cables are available, please contact us for details.

Illustration	Select
PVC (rated to 105ºC)
PVC with Screen (rated to 105ºC)
PFA 1/0.5mm (rated to 250ºC)
PFA 7/0.2mm (rated to 250ºC)
PFA with Screen (rated to 250ºC)
Fibreglass 1/0.5mm(rated to 480ºC)
Fibreglass 7/0.2mm (rated to 480ºC)
Fibreglass with Steel Overbraid (rated to 480ºC)
PVC 2-pair Inividual and Overall Screen (for Duplex only) (rated to 105ºC)
PVC 2-pair Overall Screen (for Duplex only) (rated to 105ºC)
Colour Codes available to IEC 60751
Please enter Cable length in metres mtrs
