Pipe Resistance Thermometers- Adjustable Ring (Type 67A)

Plastics Machinery RTD Pt100's

Send Enquiry Buy Online Request Info

Related Products

RTD Pt100 Indicator

Miniature Socket - Three Pin

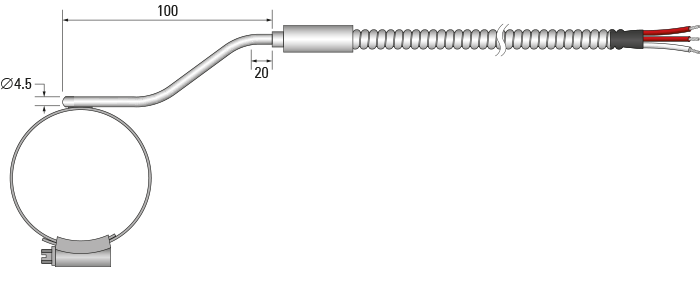

This adjustable ring RTD Pt100 sensor is for pipe temperature measurement up to 350°C. Ring mounted at 90 degrees to pipe. Available in tolerance classes B or A. Normally supplied with stainless steel conduit over PFA extension leads, although other lead options are available. Available in a 3 or 4-wire configuration.

Adjustable RTD Enquiry Form

1. Tolerance of Element

	Tolerance of Element (IEC 60751 for Pt100)		Select
Grade	Accuracy @ 0ºC	Accuracy @ 100ºC
B	±0.30°C	±0.80°C
A	±0.15°C	±0.35°C

2. Diameter Required

mm

3. Cable Length

mtrs*

4. Wiring Configuration

	Wiring Configuration (IEC 60751)	Select
3	3 wire (most popular)
4	4 wire

5. Optional Plug Style

Illustration	Select
CE7 - Miniature Plug Plastic, rated to 220ºC (normal)
CE6 - Standard Plug Plastic, rated to 220ºC (normal)

6. Quantity Required

Qty Required

Contact Details

Company Name

Your Name

Title/Dept.

Email

Telephone

Additional Information

If your enquiry is for more than one style of sensor, please email us with your requirements or use the box below
