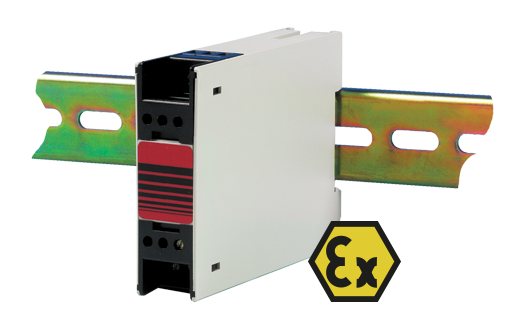

ATEX Approved Thermocouple and RTD Transmitter - DIN Rail Mounting

Temperature Transmitters

Send Enquiry Buy Online Request Info

Related Products

ATEX/IECEx Approved Thermocouple
with pot seal

ATEX/IECEx Approved
Resistance Thermometers
with pot seal

Technical Features – Input
Input RTD : Pt100
Input T/C : K, J, T, E, N
Minimum Span See table below

Technical Features – Output/Power Supply
Output : 4..20 mA or 20..4 mA
Linearization : On / Off
Supply : 10..40 VDC, Polarity Protected
Supply Effect : 0.001%/V

Other Features
Max. Ripple :10 V PP. Min Vbat=10 VDC
Zero Drift : ± 0.01%/°C or ±0.02°C/°C
Span Drift : ± 0.005%/°C or ±0.01°C/°C
Long Term Drift : ± 0.05%/Year
Cold Junction Drift : ± 0.01°C/°C
Excitation Current, RTD : 0.1 mA
Sensor Lead Resistance, RTD : 500 Ohm max.
Sensor Lead Resistance Effect : 0.001°C/Ohm
Sensor Lead Resistance, T/C : 10,000 Ohm max.
Open Circuit Detection : Upscale / Downscale
Load Capability : Vbat-10V / 20 mA
Startup Time : 20 sec.
Warmup Time : 5 Min.
Isolation : 500 VDC
Ambient Operating Temp. : -40...+ 85°C.
Storage Temperature : -40...+100°C.
Housing Material : Makrolon
Housing Dimension : 22.5 x 75 x 99 mm (0.89” x 2.92” x 3.9”)

Input and Range Table

	Input	Range °C	Min Span °C
Thermocouple	K	-200... 1370	50
	J	-150... 1200	50
	T	-200... 400	50
	E	-270... 1000	50
	N	0... 1300	50

RTD	Pt100	-200... 850	25
