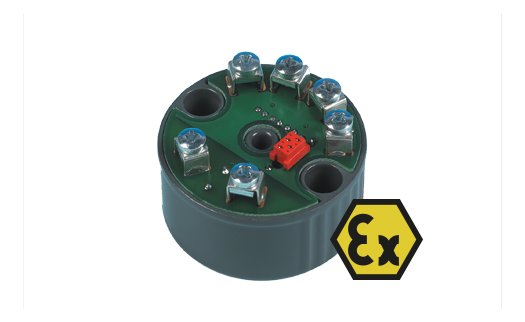

ATEX Approved Thermocouple and RTD Transmitter - Head Mounting
Temperature Transmitters
Related Products
Mineral Insulated Thermocoupleswith ATEX/IECEx approval
Mineral InsulatedResistance Thermometers
with ATEX/IECEx approval
Technical Features – Input
Input RTD : Pt100
Input T/C : K, J, T, E, N
Minimum Span See table below
Technical Features – Output/Power Supply
Output : 4..20 mA or 20..4 mA
Linearization : On / Off
Supply : 10..40 VDC, Polarity Protected
Supply Effect : 0.001%/V
Input RTD : Pt100
Input T/C : K, J, T, E, N
Minimum Span See table below
Technical Features – Output/Power Supply
Output : 4..20 mA or 20..4 mA
Linearization : On / Off
Supply : 10..40 VDC, Polarity Protected
Supply Effect : 0.001%/V
Other Features
Max. Ripple :10 V PP. Min Vbat=10 VDC
Zero Drift : ± 0.01%/°C or ±0.02°C/°C
Span Drift : ± 0.005%/°C or ±0.01°C/°C
Long Term Drift : ± 0.05%/Year
Cold Junction Drift : ± 0.01°C/°C
Excitation Current, RTD : 0.1 mA
Sensor Lead Resistance, RTD : 500 Ohm max.
Sensor Lead Resistance Effect : 0.001°C/Ohm
Sensor Lead Resistance, T/C : 10,000 Ohm max.
Open Circuit Detection : Upscale / Downscale
Load Capability : Vbat-10V / 20 mA
Startup Time : 20 sec.
Warmup Time : 5 Min.
Isolation : 500 VDC
Ambient Operating Temp. : -40...+ 85°C.
Storage Temperature : -40...+100°C.
Housing Material : Makrolon
Housing Dimension : 43mm Dia. x 27mm H.
Max. Ripple :10 V PP. Min Vbat=10 VDC
Zero Drift : ± 0.01%/°C or ±0.02°C/°C
Span Drift : ± 0.005%/°C or ±0.01°C/°C
Long Term Drift : ± 0.05%/Year
Cold Junction Drift : ± 0.01°C/°C
Excitation Current, RTD : 0.1 mA
Sensor Lead Resistance, RTD : 500 Ohm max.
Sensor Lead Resistance Effect : 0.001°C/Ohm
Sensor Lead Resistance, T/C : 10,000 Ohm max.
Open Circuit Detection : Upscale / Downscale
Load Capability : Vbat-10V / 20 mA
Startup Time : 20 sec.
Warmup Time : 5 Min.
Isolation : 500 VDC
Ambient Operating Temp. : -40...+ 85°C.
Storage Temperature : -40...+100°C.
Housing Material : Makrolon
Housing Dimension : 43mm Dia. x 27mm H.
Input and Range Table
Input |
Range °C |
Min Span °C |
|
| Thermocouple | K |
-200... 1370 | 50 |
J |
-150... 1200 | 50 | |
T |
-200... 400 | 50 | |
E |
-270... 1000 | 50 | |
| N | 0... 1300 | 50 | |
| RTD | Pt100 | -200... 850 | 25 |
