Multipair Thermocouple Cable - PFA Insulated with Stainless Steel Braid

Multipair Thermocouple Cables

Send Enquiry Buy OnlineRequest Info Data Sheet
  • Ideal for higher temperature applications up to 250°C when Heat Resistant PVC is not adequate
  • Excellent for cryogenic use down to –75°C
  • PFA will withstand attack from virtually all known chemicals, oils and fluids. All our PFA cables are gas, steam and water tight which makes them most suitable for applications such as autoclaves or sterilizers
  • By using multipair, the problem of having many unwieldy single pair cables is eliminated
  • Available with and without stainless steel braid in the more popular conductor combinations
PFA Multipair with Stainless Steel Braid

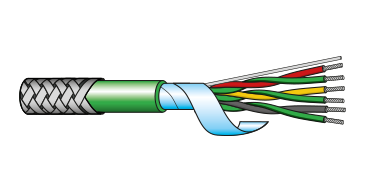

Multipairs of 7/0.2mm dia conductors PFA insulated. Pairs twisted and bunched and screened with Mylar® aluminium tape with a drainwire. PFA sheathed with overall stainless steel braid.
Stock Number BM0702/SSB BM0703/SSB BM0704/SSB BM0706/SSB BM0712/SSB BM0716/SSB
Conductor Style   Stranded
No. of Strands / Strand Diameter (mm)   7/0.2 7/0.2 7/0.2 7/0.2 7/0.2 7/0.2
Total Area (mm2)   0.22 0.22 0.22 0.22 0.22 0.22
Total AWG (S = Stranded)   24S 24S 24S 24S 24S 24S
Insulation   PFA
Number of Pairs   2 3 4 6 12 16
Laid Flat or Twisted   Twisted
Screen   No
Insulation   PFA
Insulation
Rating (ºC)		 Continuous   -75 to +250
Short Term   +300
Colour Coding   Yes
Physical
Properties		 Abrasion Resistance   Very Good
Moisture Resistance   Very Good
Typical Weight (Kg/100m)
excl reel		   5.2 5.7 6.4 9 12 14
Diameter under Armour (mm)   —
Diameter over Armour (mm)   —
Overall Diameter   5 5 6 7 9 10
Popular Order Codes

BM0702KX/SSB, BM0702TX/SSB, BM0702JX/SSB, BM0702RCA/SSB

BM0703KX/SSB, BM0703TX/SSB

BM0704KX/SSB, BM0704TX/SSB

BM0706KX/SSB, BM0706TX/SSB, BM0706JX/SSB, BM0706NX/SSB

BM0712KX/SSB

BM0716KX/SSB
Notes



All dimensions are approximate		 Rejects electromagnetic and electrostatic interference.
Gas, steam and water tight insulation.
