Multipair Thermocouple Cable - Fibreglass Insulated with Stainless Steel Braid

Multipair Thermocouple Cables - Single Pair

Send Enquiry Buy Online Request Info Data Sheet

Excellent for high temperature applications up to 480°C Suitable for use at normal air ambient temperatures where there is a possibility of a hot spot which might damage lower rated cables such as PVC or PFA By using multipair, the problem of having many unwieldy single pair cables is eliminated Available with and without stainless steel braid in the more popular conductor combinations

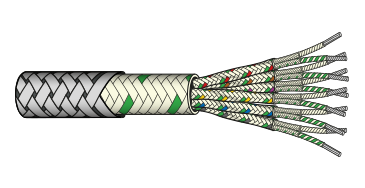

			Fibreglass Multipair with Stainless Steel Braid Multipairs of stranded 14/0.2mm dia conductors double glass fibre lapped, braided and varnished. Pairs twisted, glass fibre braided and varnished, bunched, braided and varnished with overall stainless steel braid.
Stock Number			CM1402/SSB	CM1403/SSB	CM1406/SSB	CM1412/SSB
	Conductor Style		Stranded
	No. of Strands / Strand Diameter (mm)		14/0.2	14/0.2	14/0.2	14/0.2
	Total Area (mm²)		0.44	0.44	0.44	0.44
	Total AWG (S = Stranded)		21S	21S	21S	21S
	Insulation		Fibreglass
	Number of Pairs		2	3	6	12
	Laid Flat or Twisted		Twisted
	Screen		No
	Insulation		Fibreglass
	Insulation Rating (ºC)	Continuous	+480
		Short Term	+540
	Colour Coding		Yes
	Physical Properties	Abrasion Resistance	Good
		Moisture Resistance	None
		Typical Weight (Kg/100m) excl reel	8	12	18	27
	Diameter under Armour (mm)		—
	Diameter over Armour (mm)		—
	Overall Diameter		6	8	11	16
Popular Order Codes			CM1402KX/SSB, CM1402JX/SSB CM1403KX/SSB, CM1403RCA/SSB CM1406KX/SSB, CM1406JX/SSB CM1412KX/SSB
Notes All dimensions are approximate			Impregnation retained up to 180°C. Above this temperature the integrity of the cable is maintained to the upper insulation rating limit provided the cable is not flexed particularly when cold.
