Multipair Thermocouple Cable - Non Armoured Flame Retardant PVC Insulated

Multipair Thermocouple Cables

Send Enquiry Buy Online Request Info Data Sheet

Extremely useful where there is a need to run a number of thermocouple signals back to instrumentation
16/0.2mm dia (0.5mm²) conductors with an individual and collective screen. Cores and overall sheath in flame retardant PVC

Non Armoured PVC Multipair

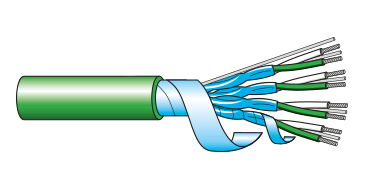

Multipairs of stranded 16/0.2mm dia conductors FR PVC insulated. Pairs numbered, twisted and individually screened with Mylar^® aluminium tape with a drainwire. Pairs laid up, overall screened with Mylar^® aluminium tape with a drainwire. FR PVC sheathed.

Stock Number

M3502

M3504

M3506

M3508

M3512

M3516

M3520

M3524

M3536

M3550

Conductor Style

Stranded

No. of Strands / Strand Diameter (mm)

16/0.2

Total Area (mm²)

0.5

Total AWG (S = Stranded)

20S

Insulation

Flame Retardant PVC

Number of Pairs

Laid Flat or Twisted

Twisted

Screen

Yes - Individually Screened Pairs

Insulation

Flame Retardant PVC

Insulation
Rating (ºC)

Continuous

-30 to +75

Short Term

—

Colour Coding

Yes

Physical
Properties

Abrasion Resistance

Good

Moisture Resistance

Very Good

Typical Weight (Kg/100m)
excl reel

120

165

Diameter under Armour (mm)

—

Diameter over Armour (mm)

—

Overall Diameter

10.6

12.5

15.2

16.1

20.4

22.8

24.9

28.4

33.2

39.2

Popular Order Codes

M3502KX, M3502KCB, M3502TX, M3502JX, M3502NX, M3502RCA

M3504KX, M3504KCB, M3504TX, M3504JX, M3504NX, M3504RCA

M3506KX, M3506KCB, M3506TX, M3506JX, M3506NX, M3506EX, M3506RCA

M3508KX, M3508KCB, M3508TX, M3508JX, M3508NX

M3512KX, M3512KCB, M3512TX, M3512JX, M3512NX, M3512RCA

M3516KX, M3516KCB, M3516TX, M3516JX, M3516NX

M3520KX, M3520KCB, M3520TX, M3520JX

M3524KX, M3524KCB, M3524TX, M3524JX, M3524RCA

M3536KCB

Notes

All dimensions are approximate

Individually and Collectively Screened. Flame Retardant PVC Insulated.
