Miniature thermocouples from TC Ltd help automotive company gain crucial data to win competitive development race
Background to Temperature Measurement Project
TC were contacted by a world-renowned automotive company, who manufacture vehicles, compete across many disciplines and have won various titles all over the world.
The company needed to measure temperatures on a very small surface area on one of their vehicles, which was critical for a fast-paced development project. The area to be measured was under 20mm², with only 1.2mm of clearance space for sensor installation.
Thermocouple Solution
We were asked to provide a solution that would meet the customer’s demanding specifications. The tight space and the small surface area required a very precise and compact sensor that would deliver reliable performance. The project was urgent, as it was part of a rapid development program.

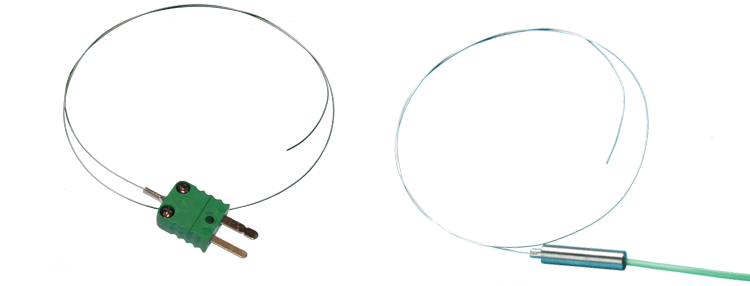

We proposed a range of miniature thermocouples with diameters of 0.25mm and 0.5mm, built with a mineral insulated construction for flexibility and durability. The construction of these thermocouples allowed for precise placement on the small surface area while also enabling the sensors to be bent and routed through the constrained spaces within the application.
Swift Delivery of Thermocouples
Understanding the critical timeline, TC Ltd utilised their distribution division, TC Direct, to provide an immediate solution. The company’s extensive stock of standard thermocouples included the miniature thermocouples our customer needed. With the thermocouples ready for next-day delivery, the client was able to place an order at 2 pm, and the sensors were shipped the same day, ensuring they arrived on time for the development project.
Outcome and benefits
Thanks to the timely delivery of the ex-stock thermocouples, the customer successfully installed the sensors as part of their rapid development program. The data collected from these sensors proved invaluable, allowing the company to make significant advances in the vehicle development. Following the success of the initial tests, the client went on to order custom-made miniature thermocouples built to their specific needs for future testing.
The miniature thermocouples TC were able to offer from stock and subsequent custom-built supply allowed our client to rapidly develop their vehicle and steal a march on their competitors in a fiercely competitive development race.
Note: This solution resolved a specific challenge in a particular application. Every situation is different, and your needs may require a different approach. The suitability of any of our products for a particular application is ultimately for the purchaser to determine, as they are best positioned to make that judgment.
These case studies are shared to illustrate how our products have been used successfully, but final product selection should always be based on your specific application requirements, standards, and industry regulations. The suitability of any of our products for a particular application is entirely at the discretion of the purchaser as being the best judge for that particular application.
For application-specific advice, please contact us — one of our engineers will be happy to assist with technical guidance.
