Bayonet RTD Pt100s - Heavy Duty (Type 71C)

Plastics Industry RTD Pt100 Sensors

RTD, PRT, Pt100 Sensor Heavy Duty Bayonet

Send Enquiry Buy Online Request Info

Related Products

RTD Pt100 Indicator

Related Products

Miniature Socket - Three Pin

Related Products

Standard Socket - Three Pin

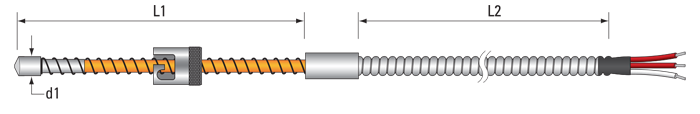

These RTD Pt100 bayonet sensors are for more heavy duty applications in the plastics and other industries. They are supplied with a 200mm spring on which an industry standard one slot adjustable bayonet cap fitting is screwed onto for fine positioning on site. These assemblies are available in tolerance classes B or A and the sensing tip is incorporated within an 18mm long x 4.7, 6.0 or 8.0mm diameter (specify as d1) tube. The flexible stainless steel armoured (conduit) cable provides increased mechanical protection in arduous environments. Available as a 3 or 4-wire configuration.

Heavy Duty PRT Enquiry Form

1. Tolerance of Element

	Tolerance of Element (IEC 60751 for Pt100)		Select
Grade	Accuracy @ 0ºC	Accuracy @ 100ºC
B	±0.30°C	±0.80°C
A	±0.15°C	±0.35°C

2. Wiring Configuration

	Wiring Configuration (IEC 60751)	Select
3	3 wire (most popular)
4	4 wire

3. Sheath Diameter

4. Sheath Length 'L1'

mm

5. Conduit Length 'L2'

mtrs*

6. Optional Plug Style

Illustration	Select
CE7 - Miniature Plug Plastic, rated to 220ºC (normal)
CE6 - Standard Plug Plastic, rated to 220ºC (normal)

7. Quantity Required

Qty Required
