Resistance Thermometer Swaged Tip with Standard Plug

Three styles of RTD Pt100 (PRT) sensor are available; Type 17's, our most popular style, are economical, semi flexible and suited to a wide variety of industrial applications up to 500°C. Type 18's are best suited for applications up to 600°C or where a high accuracy element is incorporated and Type 16's, which are ideal for rigid stem applications or where the sensor is shorter than 50mm, rated to 250°C
Custom built to your specification and terminated in a choice of miniature plugs rated to 220ºC or 350ºC
Alternatively, we have a large range of sensors available to buy online in various diameters and lengths

High accuracy, repeatability and reproducibility as simplex, duplex or triplex element assemblies
Wide operating temperature range of -100ºC to +600ºC
Available in 2, 3 and 4 wire configurations, in grade B, A, 1/3, 1/5 or 1/10 accuracy
316L Stainless Steel sheathed and manufactured to IEC 60751

Sheaths can generally be bent and twisted to suit the application (do not bend within 50mm of the tip)

Number of Elements	Select
Simplex (1 element)
Duplex (2 elements)
Triplex (3 elements)
Resistance value at 0ºC: 100Ω (standard) 130Ω 1000Ω

	Tolerance of Element (IEC 60751 for Pt100)		Select
Grade	Accuracy @ 0ºC	Accuracy @ 100ºC
B	±0.30°C	±0.80°C
A	±0.15°C	±0.35°C
1/3	±0.10°C	±0.27°C
1/5	±0.06°C	±0.16°C
1/10	±0.03°C	±0.08°C
Note: 130Ω elements are only available in Grade B

1	Sensor Style	Temperature Range
17	Type 17 - Semi flexible, Mineral Insulated Our most popular style	-100ºC to +500ºC
18	Type 18 - Semi flexible, Mineral Insulated Good for high accuracy, high temp applications	-100ºC to +600ºC
16	Type 16 - Semi flexible, Rigid Sheath Ideal for rigid stem applications or where the sensor is shorter than 50mm	-100ºC to +250ºC

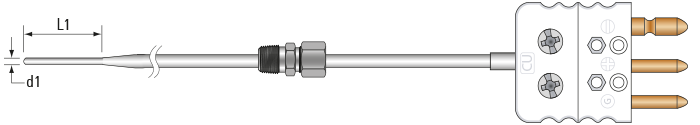

Swaged Tip Pt 100 Sensor (PRT) with Standard Plug

Illustration	Select
CE6 - Standard Plug Plastic, rated to 220ºC (normal)
