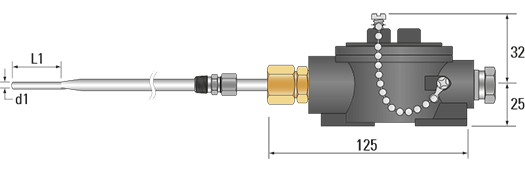

Swaged Tip Pt 100 Sensor (PRT) with die cast alloy straight through head
Swaged Tip Resistance Thermometers - Pt100 Sensors
- Three styles of RTD Pt100 (PRT) sensor are available; Type 17's, our most popular style, are economical, semi flexible and suited to a wide variety of industrial applications up to 500°C. Type 18's are best suited for applications up to 600°C or where a high accuracy element is incorporated and Type 16's, which are ideal for rigid stem applications or where the sensor is shorter than 50mm, rated to 250°C
- Custom built to your specification and terminated in a die cast alloy straight through terminal head with a bakelite terminal block. Suitable for simplex or duplex assemblies. Supplied with a 20mm x 1.5mm pitch ISO pinch gland on the cable entry for cables from 6mm to 14mm diameter
- Alternatively, we have a large range of sensors available to buy online in various diameters and lengths
- High accuracy, repeatability and reproducibility as simplex, duplex or triplex element assemblies
- Wide operating temperature range of -100ºC to +600ºC
- Available in 2, 3 and 4 wire configurations, in grade B, A, 1/3, 1/5 or 1/10 accuracy
- 316L Stainless Steel sheathed and manufactured to IEC 60751
Sheaths can generally be bent and twisted to suit the application (do not bend within 50mm of the tip)
