Panel Temperature Indicator with 6 Alarms

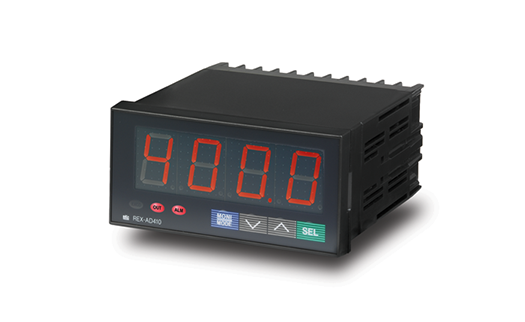

Panel Temperature Indicator
Inputs
The AD410 has a universal input and can be configured by the user for thermocouple, resistance thermometer as well as voltage or current inputs.
Alarms
The AD410 can have up to six low cost process alarms which can be specified and configured by the user. In addition, alarm interlocking (latching), alarm energisation and alarm delay time may be easily programmed for each alarm output. Optional external input contacts allow a latched alarm to be remotely reset.
Process Value Bias
This option allows the measured object temperature to be offset on the display to compensate for errors due to difficulties in correct placement of the sensor.
Data Security
Non volatile memory and set data lock prevents loss or inadvertent change of data due to power failure or incorrect operation.
Analogue Output Option
A range of isolated DC voltage and current outputs which can be configured by the user.
The AD410 has a universal input and can be configured by the user for thermocouple, resistance thermometer as well as voltage or current inputs.
Alarms
The AD410 can have up to six low cost process alarms which can be specified and configured by the user. In addition, alarm interlocking (latching), alarm energisation and alarm delay time may be easily programmed for each alarm output. Optional external input contacts allow a latched alarm to be remotely reset.
Process Value Bias
This option allows the measured object temperature to be offset on the display to compensate for errors due to difficulties in correct placement of the sensor.
Data Security
Non volatile memory and set data lock prevents loss or inadvertent change of data due to power failure or incorrect operation.
Analogue Output Option
A range of isolated DC voltage and current outputs which can be configured by the user.
Maximum and Minimum Process Value Memory
The AD410 stores the highest and the lowest process values which can be easily viewed using the front panel operating keys. The optional digital contact input enables the stored values to be remotely reset.
Contact Inputs
A two point volt free contact input may be specified for the AD410 for Max and Min memory reset and Interlocked Alarm Reset..
Communication
RS485/422A communication allows this indicators to be connected to PCs and PLCs. With this feature up to 32 instruments can be connected to a single communication port.
Power Supply
This option for the AD410 to provide a power supply to power the channel identification LED display on the matching SP400/SP500 switch boxes.
Optional Front Plastic Cover
An optional front plastic cover is available which protects the instrument face.
Supply
A choice of 85/264V AC or 24V AC/DC supplies is available.
The AD410 stores the highest and the lowest process values which can be easily viewed using the front panel operating keys. The optional digital contact input enables the stored values to be remotely reset.
Contact Inputs
A two point volt free contact input may be specified for the AD410 for Max and Min memory reset and Interlocked Alarm Reset..
Communication
RS485/422A communication allows this indicators to be connected to PCs and PLCs. With this feature up to 32 instruments can be connected to a single communication port.
Power Supply
This option for the AD410 to provide a power supply to power the channel identification LED display on the matching SP400/SP500 switch boxes.
Optional Front Plastic Cover
An optional front plastic cover is available which protects the instrument face.
Supply
A choice of 85/264V AC or 24V AC/DC supplies is available.
