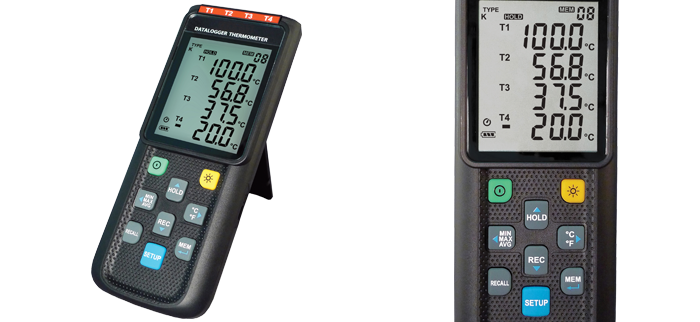

Hand Held 4 Channel Multi Thermocouple Bluetooth Datalogger with Windows® Software

Hand Held Indicators

This four channel hand held datalogging indicator will accept Types K T J N R S or E thermocouple sensors and features a clear a clear backlit LCD display and tilt stand design. The instrument can log up to 32000 readings per channel and via a USB output and supplied Windows® software or Bluetooth adaptor (dependant on unit selected), measurements can be made in the field and then downloaded simultaneously or later to a PC. High and Low alarms are configurable from the PC as well as being able to export the data in a variety of formats. It is possible to log each channel or the differential temperature between two channels. The interval programme on the indicator incorporating a real time clock allows unsupervised measurements in variable increments. Other features include max/min/avg display and data hold function keys, timer, a °C/°F/K transfer key and an ergonomically designed keypad with non slip function keys.
  • Multi channel input. Logging of either measurement or a differential measurement possible
  • Bluetooth connectivity only available with Bluetooth adaptor
  • Up to 32000 readings per channel
  • Windows® software supplied
  • Selectable for thermocouple types K T J N E R or S connected via a miniature flat pin plug
  • °C/°F/K selectable
  • Accuracy: +/- 0.1% of reading + 0.7ºC/1.4ºF
  • Resolution: 0.1°C/°F/K
  • Sampling Time: Selectable, from 1 second to 23 hours, 59 minutes, 59 seconds.
  • Supplied with USB cable and Windows® software
  • Power supply: 4 AAA batteries (supplied)
  • Battery Life: 1000hrs

Hand Held Datalogger Enquiry Form

This hand held digital thermocouple indicator is available to buy online. However, if you have a particular application that you require advice on or a question relating to this product, please use the form below to contact us. Alternatively please email us with your requirements or call one of our experienced engineers on 01895 252222.
