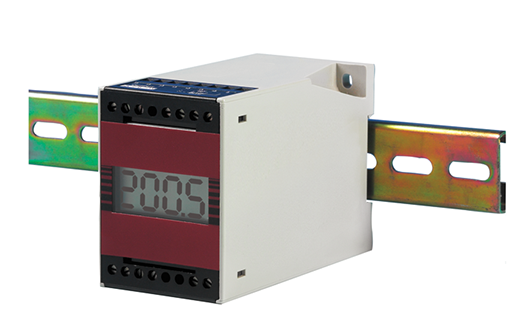

Thermocouple and RTD Transmitter with Display - DIN Rail Mounting
Temperature Transmitters
Related Products
Mineral Insulated Thermocoupleswith pot seal
Mineral InsulatedResistance Thermometers
with pot seal
Technical Features – Input
Input RTD : Pt100
Input T/C : K, J, T, E, N
Minimum Span See table below
Technical Features – Output/Power Supply
Output : 4..20 mA , 20..4 mA, 0...1V and 0... 10V
Linearization : On / Off
Supply : 12VAC, 12VDC, 24VAC, 24VDC, 115VAC, 230VAC
Input RTD : Pt100
Input T/C : K, J, T, E, N
Minimum Span See table below
Technical Features – Output/Power Supply
Output : 4..20 mA , 20..4 mA, 0...1V and 0... 10V
Linearization : On / Off
Supply : 12VAC, 12VDC, 24VAC, 24VDC, 115VAC, 230VAC
Other Features
Zero Drift : ± 0.01%/°C or ±0.02°C/°C
Span Drift : ± 0.005%/°C or ±0.01°C/°C
Cold Junction Drift : ± 0.01°C/°C
Excitation Current, RTD : 0.1 mA
Sensor Lead Resistance, RTD : 500 Ohm max.
Sensor Lead Resistance Effect : 0.001°C/Ohm
Sensor Lead Resistance, T/C : 10,000 Ohm max.
Open Circuit Detection : Upscale / Downscale
Startup Time : 20 sec.
Warmup Time : 5 Min.
Supply Voltage Effect : 0.001%V
Ambient Operating Temp. : -10...+ 70°C.
Storage Temperature : -20...+100°C.
Housing Material : Makrolon
Housing Dimension : 55 x 75 x 110 mm (2.16” x 2.9” x 4.3”)
Zero Drift : ± 0.01%/°C or ±0.02°C/°C
Span Drift : ± 0.005%/°C or ±0.01°C/°C
Cold Junction Drift : ± 0.01°C/°C
Excitation Current, RTD : 0.1 mA
Sensor Lead Resistance, RTD : 500 Ohm max.
Sensor Lead Resistance Effect : 0.001°C/Ohm
Sensor Lead Resistance, T/C : 10,000 Ohm max.
Open Circuit Detection : Upscale / Downscale
Startup Time : 20 sec.
Warmup Time : 5 Min.
Supply Voltage Effect : 0.001%V
Ambient Operating Temp. : -10...+ 70°C.
Storage Temperature : -20...+100°C.
Housing Material : Makrolon
Housing Dimension : 55 x 75 x 110 mm (2.16” x 2.9” x 4.3”)
Input and Range Table
Input |
Range °C |
Min Span °C |
|
| Thermocouple | K |
-200... 1370 | 50 |
J |
-150... 1200 | 50 | |
T |
-200... 400 | 50 | |
E |
-270... 1000 | 50 | |
| N | 0... 1300 | 50 | |
| RTD | Pt100 | -200... 850 | 25 |
