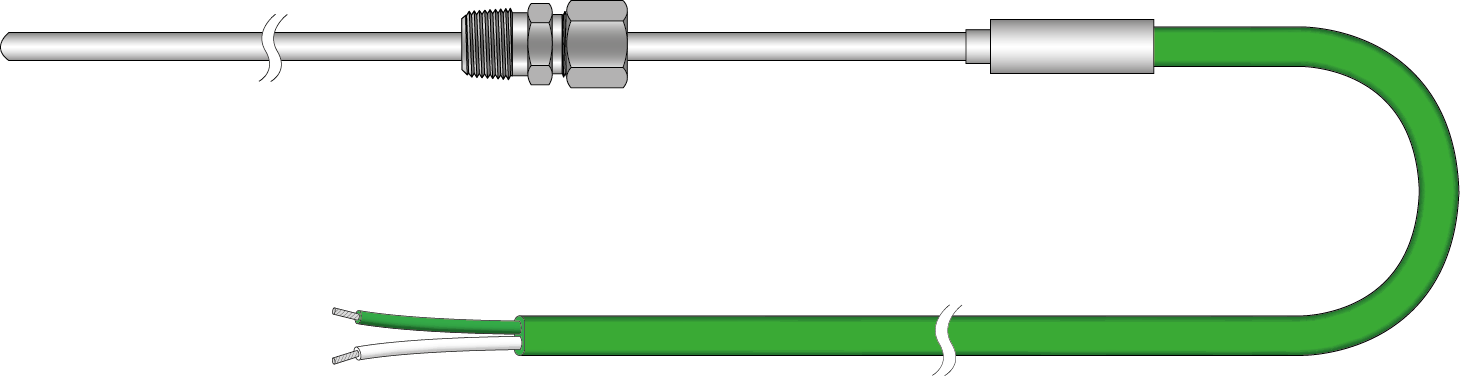

Thermocouple with Pot Seal

Mineral Insulated Thermocouples

Send Enquiry Buy Online Request Info Data Sheet

Related Products

Thermocouple Connectors
  • Mineral insulated thermocouple sensors have a high integrity construction, suited to arduous operating conditions at temperatures from -200ºC to +1400ºC. (The maximum operating temperature is dependant on diameter and environmental factors, further guidance is available here.)
  • Custom built to your specification and terminated in a wide choice of pot seal styles and temperature ratings. Supplied with either short tails as shown or a longer extension lead
  • Alternatively, we have a large range of sensors available to buy online in various diameters and lengths
  • High accuracy and stability maintained throughout the operating life of the sensor
  • Fast response and high insulation resistance
  • Available in thermocouple types K, T, J, N, E, R, S & B with sheath diameters from 0.25mm to 10.8mm and lengths from a few millimetres to 200 metres or more dependent on the sheath diameter selected

Thermocouple Enquiry Form

1a. Thermocouple Type
1b. Tolerance Class
2. Sheath Material
3. Sheath Diameter
4. Sheath Length

 mm
5. Types of Sensing Junction

Illustration Select
INSULATED Junction
GROUNDED Junction
EXPOSED Junction
Duplex Element Required? (please tick box)
Triplex Element Required? (please tick box)
6. Pot Seal Style

Illustration Select
Crimp on St./St. Pot Seal
(sheath diameters up to 3mm)
Crimp on St./St. Pot Seal
(sheath diameters 3mm to 8mm)
Pot Seal with Anti Chafe Spring
(sheath diameters 3mm to 8mm)
Threaded Pot - 8mm ISO x 1mm
(sheath diameters up to 3mm)
Brass Compression Gland Seal 16mm ISO x 1.5mm - FIXED
(sheath diameters 1mm to 8mm)
St./St. Compression Gland Seal 16mm ISO x 1.5mm - FIXED
(sheath diameters 1mm to 8mm)

End Seal Temperature Rating:
7. Extension Leads

Illustration Select
PVC (rated to 105ºC)
PFA (rated to 250ºC)
Fibreglass (rated to 480ºC)
Fibreglass with St./St. Overbraid (rated to 480ºC)
Colour Codes available to IEC 60751
Please enter Cable length in metres

 mtrs
8. Optional Compression Fitting
9. Optional Connector

Illustration Select
Standard 2 pin (round) Plug
Miniature 2 pin (flat) Plug
Standard 2 pin (round) Socket
Miniature 2 pin (flat) Socket
Colour Codes available to IEC 60751

Connector Temperature Rating:
10. Quantity Required

Contact Details

Company Name


Your Name


Title/Dept.


Email


Telephone


Additional Information

If your enquiry is for more than one style of sensor, please email us with your requirements or use the box below



Send Enquiry

We will only use your email address to contact you. We will never give your email address to 3rd parties and we do not sell data on to any other company. We prefer to concentrate on making quality temperature related products. Our privacy policy can be viewed here.
BACK TO TOP
Products

Contact Us

About TC

FREE Guide

Privacy Policy

Terms and Conditions

Sitemap
FREE Wallchart Guide to
Thermocouples and RTD Sensors

Join over 500,000 engineers and buyers who have already received our FREE 74 page A3 Guide to Thermocouple and Resistance Thermometry

Company Name
   Address 1
Your Name
   Address 2
Title / Dept.
   County / Region / State
Email
   Postcode / ZIP Code
Telephone
   Country
Company Name
Your Name
Title / Dept.
Address 1
Address 2
County / Region / State
Postcode / ZIPCode
Country
Email
Telephone

We will only ever use the information you provide to occasionally contact you regarding our products and we will never disclose your details to a third party. Please see our privacy policy for more details.



I agree to the terms and conditions listed in the Privacy Policy
View our ISO 90001/2008 Certficate recycle products EHS Policy
View our ISO 90001/2008 Certficate

recycle products

EHS Policy


Thermocouple Sensors
Mineral Insulated Thermocouples
Thermocouples with Mini Plug
Thermocouples with Terminal Head
Thermocouples with Cable
High Temperature Thermocouples
General Purpose Thermocouples
ATEX/IECex Thermocouple Sensors
Ceramic Thermocouple Sensors
Fast Response Thermocouple Sensors
Autoclave Thermocouple Sensors
Surface Measurement Thermocouple Sensors
FEP Insulated Thermocouple

Platinum Resistance Thermometers
Mineral Insulated RTD Pt100 Sensors
Rigid Stem RTD Pt100 Sensors
Hand Held RTD Pt100 Sensors
Surface Measurement RTD Pt100 Sensors
RTD Pt100 Sensors with Cable
RTD Pt100 Sensors with Mini Plug
Autoclave RTD Pt100 Sensors
RTD Pt100 with Terminal Head
ATEX/IECex Platinum Resistance Thermometers
Fast Response RTD Pt100 Sensors
Air Temperature RTD Pt100 Sensors
Magnetic RTD Pt100 Sensors
 Cable
PVC Single Pair Thermocouple Cable
PFA Single Pair Thermocouple Cable
Fibreglass Single Pair Thermocouple Cable
PVC Multipair Thermocouple Cable
PFA Multipair Thermocouple Cable
Fibreglass Multipair Thermocouple Cable
PVC RTD Pt100 Cable
PFA RTD Pt100 Cable
Fibreglass RTD Pt100 Cable

Miniature Thermocouple Connectors
Mini Thermocouple Connectors – 220ºC Rated
Mini Thermocouple Connectors – 350ºC Rated
Mini Thermocouple Connectors – 650ºC Rated
Mini Thermocouple Connector Accessories
Mini Thermocouple Connector Panels
Mini Three Pin Connectors

Standard Thermocouple Connectors
Standard Thermocouple Connectors – 220ºC
Standard Thermocouple Connectors – 350ºC Rated
Standard Thermocouple Connectors – 650ºC Rated
Standard Thermocouple Connector Accessories
Standard Thermocouple Connector Panels
Standard Three Pin Connectors
 Instrumentation
Hand Held Indicators
Panel Indicators
Temperature Transmitters
Temperature Controllers
Temperature Programmers
Temperature Calibrators
Chart Recorders
Multi Channel Indicator
DIN Rail Mounted Transmitters
Head Mounted Transmitters
ATEX/IECEx Rated Transmitters
Dry Block Calibrator
Temperature Dataloggers

Temperature Accessories
Compression Fittings
Pressure and Vacuum Feedthroughs
ATEX/IECEx Compression Fittings

Calibration
UKAS Calibration Services

Pressure
Pressure Gauges
Pressure Transmitters

© 1998- TC Ltd., P.O. Box 130, UXBRIDGE, UB8 2YS, United Kingdom
Tel.: 01895 252222, Email: info@tc.co.uk
© 1998- TC Ltd., P.O. Box 130, UXBRIDGE, UB8 2YS, United Kingdom
Tel.: 01895252222, Email: info@tc.co.uk



1 Thermocouple Type Temperature Range (continuous) Temperature Range
(short term)
K Nickel Chromium vs
Nickel Aluminium		 0°C to +1100°C -180°C to +1350°C
T Copper vs Constantan -185°C to +300°C -250°C to +400°C
J Iron vs Constantan +20°C to +700°C -180°C to +750°C
N Nicrosil vs Nisil 0°C to +1100°C -270°C to +1300°C
E Nickel Chromium vs Constantan 0°C to +800°C -40°C to +900°C
R Platinum - 13% Rhodium vs
Platinum		 0°C to +1600°C -50°C to +1700°C
S Platinum - 10% Rhodium vs
Platinum		 0°C to +1550°C -50°C to +1750°C
B Platinum - 30% Rhodium vs
Platinum 6% Rhodium		 +100°C to +1600°C +100°C to +1820°C
Temperature ranges refer to the thermocouple type.
The temperature range of the sensor may deviate from the above,
please refer to the product description for more details
2 Sheath Material Max.
Temperature
Standard Sheath Materials
321

321 Stainless Steel

800°C
310 310 Stainless Steel 1100°C
600 Inconel 600 1100°C
Specialized Sheath Materials
601 Inconel 601 1175°C
800 Incoloy 800 1100°C
825 Incoloy 825 1100°C
114 Nicrotherm DTM 1250°C
446 AISI 446 1150°C
156 Hastelloy X 1220°C
276 Hastelloy 276 1100°C
160 Haynes 160 1200°C
P10R Platinum 10% Rhodium 1400°C
* 5.5mm diameter is a thick wall heavy duty construction

INSULATED
Hot junction insulated from sheath. Gives floating output with typical insulation resistance in excess of 100 megohms

GROUNDED
Hot junction welded to sheath tip giving earthed output and faster response to temperature changes

EXPOSED
Fastest response mainly for the measurement of air temperature in ducts. Restricted to a maximum operating temperature of 600ºC

Assemblies with pot seals are supplied with short tails as shown. However, where leads are several metres or more long, it is more suitable to have an overall sheathed cable. We recommend the following cables, which are 7/0.2mm, laid flat and overall sheathed constructions. Other cables are available, please contact us for details.
