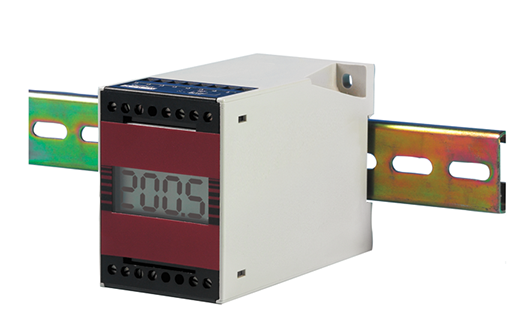

Isolated Thermocouple & RTD Transmitter with Display - DIN Rail Mounting

Temperature Transmitters

Request a Quote Buy Online from TC Direct

TC - Trusted by manufacturers, OEMs and research labs in the UK and Worldwide for over 50 years.

Related Products

Mineral Insulated Thermocouples
with pot seal

Mineral Insulated
Resistance Thermometers
with pot seal

Technical Features – Input
Input RTD : Pt100, Pt500, Pt1000, Ni100, Ni500, Ni1000, Cu10 and Cu100
Input T/C : K, J, L, T, U, E, R, S, B, C, D, N
Input : V
Input : Ohm
Minimum Span See table below

Technical Features – Output/Power Supply
Output : 4..20 mA , 20..4 mA, 0...1V and 0... 10V
Linearization : On / Off
Supply : 12VAC, 12VDC, 24VAC, 24VDC, 115VAC, 230VAC

Other Features
Zero Drift : ± 0.01%/°C or ±0.02°C/°C
Span Drift : ± 0.005%/°C or ±0.01°C/°C
Cold Junction Drift : ± 0.01°C/°C
Excitation Current, RTD : 0.1 mA
Sensor Lead Resistance, RTD : 500 Ohm max.
Sensor Lead Resistance Effect : 0.001°C/Ohm
Sensor Lead Resistance, T/C : 10,000 Ohm max.
Open Circuit Detection : Upscale / Downscale
Startup Time : 20 sec.
Warmup Time : 5 Min.
Isolation : 500 VDC
Ambient Operating Temp. : -10...+ 70°C.
Storage Temperature : -20...+100°C.
Housing Material : Makrolon
Housing Dimension : 55 x 75 x 110 mm (2.16” x 2.9” x 4.3”)

Input and Range Table

	Input	Range °C	Min Span °C
Thermocouple	K	-200... 1370	50
	J	-150... 1200	50
	L	-150... 900	50
	T	-200... 400	50
	U	-100... 600	50
	E	-270... 1000	50
	S	0... 1765	250
	R	0... 1765	250
	B	0... 1820	600
	C	0... 2300	150
	D	0... 2300	150
	N	0... 1300	50

RTD	Pt100	-200... 850	25
	Pt500	-200... 850	25
	Pt1000	-200... 850	25
	Ni100	-60... 250	25
	Ni500	-60... 250	25
	Ni1000	-60... 250	25
	Cu10	-200... 250	25
	Cu100	-200... 250	25
	mV	0... 1000	10
	Ohm	0... 10000	100
