IEC Colours			ANSI Colours
Part No.	Type	Colour	Part No.	Type	Colour
F23K-I	K		F23K-A	K
F23T-I	T		F23T-A	T
F23J-I	J		F23J-A	J
F23N-I	N		F23N-A	N
F23RS-I	R/S		F23RS-A	R/S
F23E-I	E		F23E-A	E
F23B-I	B		F23B-A	B
F23CU	Cu		F23CU	Cu

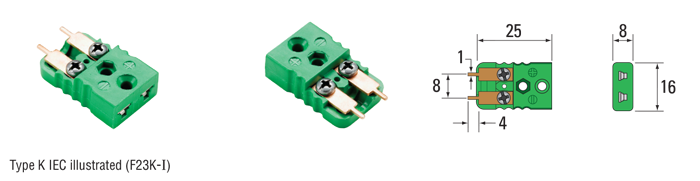

Designed to be soldered directly onto printed circuit boards - Rear Mounting
Thermoplastic body rated to 220ºC
Available for thermocouple types: K, T, J, N, R/S, E, B and Cu
Body colour coded and thermocouple type indicated on body

Polarised flat pins
Accepts stranded or solid wires up to 0.8mm diameter (0.5mm²)
Manufactured in accordance with standard EN 50212
