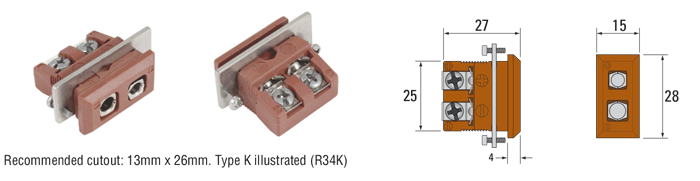

Standard High Temperature Panel Socket - R34

Standard Thermocouple Connectors rated to 350ºC

Send Enquiry Buy Online Request Info Connector Catalogue

Part No.	Type	Colour
R34K	K
R34T	T
R34J	J
R34N	N
R34RS	R/S
R34E	E
R34B	B
R34CU	Cu

Thermosetting plastic body rated to 350ºC
Available for thermocouple types: K, T, J, N, R/S, E, B and Cu (for RTD's)
Coloured brown and thermocouple type indicated on body
Easy wiring via lipped washer
Accepts stranded or solid wires up to 0.2mm to 1.29mm diameter (0.03mm² to 1.3mm²). With washer removed: up to 1.63mm diameter (2.1mm²).

Manufactured in accordance with standard EN 50212
High purity thermocouple alloys used for male pin and female socket constructions
Polarised round pins with mechanism to prevent accidental output
Single captive screw for quick assembly

Related Thermocouple Connectors

Standard High Temp
Plug

Part Code: R13 Standard High Temp
Socket

Part Code: R22 Standard High Temp
3 Pin Plug

Part Code: R18 Standard High Temp
3-Pin Socket

Part Code: R33

Connector Enquiry Form

R34 Thermocouple Type

Quantity Required

Qty Required

Contact Details

Company Name

Your Name

Title/Dept.

Email

Telephone

Additional Information

If your enquiry is for more than one style of connector, please email us with your requirements or use the box below

Send Enquiry

We will only use your email address to contact you. We will never give your email address to 3rd parties and we do not sell data on to any other company. We prefer to concentrate on making quality temperature related products. Our privacy policy can be viewed here.

1	Thermocouple Type	Temperature Range (continuous)	Temperature Range (short term)
K	Nickel Chromium vs Nickel Aluminium	0°C to +1100°C	-180°C to +1350°C
T	Copper vs Constantan	-185°C to +300°C	-250°C to +400°C
J	Iron vs Constantan	+20°C to +700°C	-180°C to +750°C
N	Nicrosil vs Nisil	0°C to +1100°C	-270°C to +1300°C
E	Nickel Chromium vs Constantan	0°C to +800°C	-40°C to +900°C
R	Platinum - 13% Rhodium vs Platinum	0°C to +1600°C	-50°C to +1700°C
S	Platinum - 10% Rhodium vs Platinum	0°C to +1550°C	-50°C to +1750°C
B	Platinum - 30% Rhodium vs Platinum 6% Rhodium	+100°C to +1600°C	+100°C to +1820°C
Temperature ranges refer to the operating range of the thermocouple type. The temperature range of the connector will be as stated. Please refer to the product description for more details.
