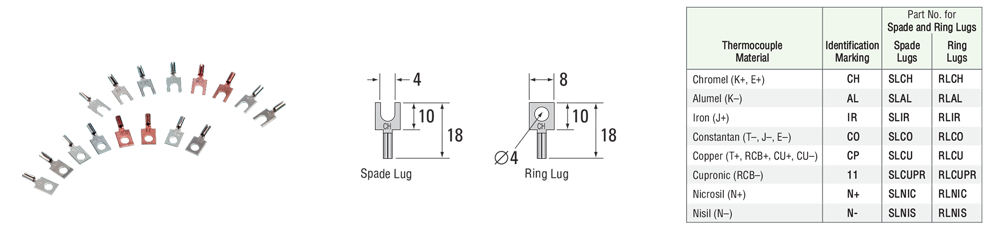

SL & RL Spade and Ring Crimp Lugs

Other Thermocouple and RTD Connectors

Application
These thermocouple & RTD spade and ring lugs are ideal for attaching to the end of thermocouple (or RTD) leads or alternatively thermocouple extension cable. Using them eliminates any potential problems that may occur by introducing other alloys into the thermocouple circuit which could affect the accuracy of the thermocouple. Both designs of lug will accommodate all wire sizes up to 1.00mm (18 AWG).
Construction
All lugs are made from the relevant thermocouple material. Ring and Spade lugs are crimped to cables.

Spade and Ring Lugs Enquiry Form

SL Spade Lug 1

SL Spade Lug 2

Quantity Required

RL Ring Lug 1

RL Ring Lug 2

Quantity Required

Contact Details

Company Name


Your Name


Title/Dept.


Email


Telephone


Additional Information

If your enquiry is for more than one style of connector, please email us with your requirements or use the box below



Send Enquiry
