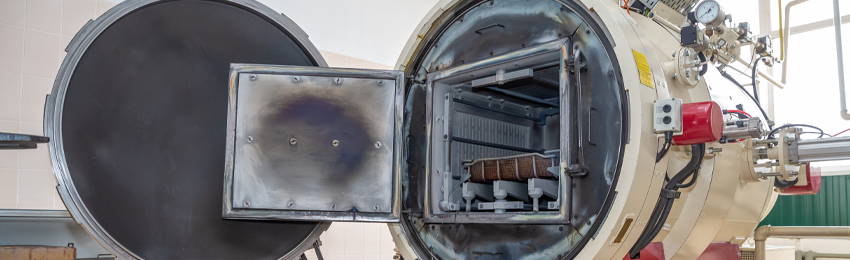

Controlling Temperature in Heat Treatment Ovens using Thermocouples

Temperature in Heat Treatment Ovens using Thermocouples

Contents

  1. Introduction
  2. The Importance of Temperature Control in Heat Treatment
  3. Key Applications of Thermocouples in Heat Treatment Ovens
  4. AMS-Approved Thermocouples and Compliance
  5. Advantages of Using Thermocouples in Heat Treatment Ovens
  6. Conclusion
  7. Further Reading

Introduction

Heat treatment is a critical process in industries such as aerospace, automotive, and metallurgy, where metals and alloys undergo controlled heating and cooling to achieve desired mechanical properties. Precise temperature control is essential for ensuring consistency, compliance with industry standards, and achieving optimal results. Thermocouples play a key role in monitoring and maintaining temperature accuracy within heat treatment ovens. This article explores their applications, placement, and the importance of AMS-approved sensors in regulated industries.

The Importance of Temperature Control in Heat Treatment

Heat treatment processes such as annealing, hardening, tempering, and stress relieving require strict temperature control to ensure:

  • Uniform heating of materials
  • Compliance with industry standards (e.g., AMS2750, NADCAP, ISO 9001)
  • Consistent metallurgical properties
  • Prevention of material warping or defects

Thermocouples are the primary sensors used to monitor and regulate temperatures within heat treatment ovens due to their high accuracy, durability, and ability to withstand extreme heat.

How does a Thermocouple Work?

Key Applications of Thermocouples in Heat Treatment Ovens

  1. Furnace Temperature Monitoring: Heat treatment ovens operate at a range of temperatures, from a few hundred to over 1,200°C, depending on the material and process. Type K, N, S, and R thermocouples are commonly used to measure and control furnace temperatures, ensuring process uniformity.
  2. Workpiece and Load Monitoring: In precision heat treatment, thermocouples are often attached directly to the workpiece or placed within the load to monitor actual material temperatures. This ensures that all parts of the load receive uniform heating and comply with required thermal profiles.
  3. Quenching and Cooling Rate Control: Some heat treatment processes involve rapid cooling (quenching) to achieve specific material properties. Thermocouples help track temperature changes during cooling phases, ensuring controlled cooling rates that prevent cracks and distortion.
  4. Atmosphere Control in Controlled Environments: In furnaces with protective gas atmospheres, such as vacuum or inert gas furnaces, thermocouples help maintain precise temperature levels to ensure repeatability and quality control.

AMS-Approved Thermocouples and Compliance

For industries such as aerospace and defense, thermocouples must meet stringent requirements defined by AMS2750 (Aerospace Material Specification). AMS-compliant thermocouples ensure:

  • Traceability and calibration accuracy
  • Consistent performance over time
  • Compliance with regulatory bodies such as NADCAP

Common AMS-approved thermocouple types include:

  • Type K (Nickel-Chromium/Nickel-Alumel) – Used for general-purpose heat treatment applications
  • Type N (Nicrosil/Nisil) – Preferred for stability at high temperatures.
  • Type S and R (Platinum-Rhodium/Platinum)– High-accuracy sensors used in critical aerospace and medical applications

Advantages of Using Thermocouples in Heat Treatment Ovens

  • High-temperature capability – Able to withstand extreme conditions
  • Fast response time – Ensures quick adjustments to maintain process control
  • Durability in harsh environments - Resistant to oxidation and corrosion
  • Integration with automated systems – Seamlessly connects with modern furnace controllers

Conclusion

Thermocouples play an essential role in heat treatment ovens, ensuring precise temperature monitoring and compliance with industry standards. AMS-approved thermocouples are particularly critical in regulated industries, where traceability and accuracy are paramount. By selecting the right thermocouple type and placement, manufacturers can optimize their heat treatment processes, improve product quality, and maintain compliance with stringent industry standards.

Note: These application examples are provided to illustrate potential uses of our products across various industries. However, it is important to note that final product selection should be based on your specific application requirements, standards, and industry regulations. The suitability of any of our products for a particular application is entirely at the discretion of the purchaser as being the best judge for that particular application.

For application-specific advice, please contact us — one of our engineers will be happy to assist with technical guidance.
