100mm Stainless Steel Pressure Gauge

Pressure Gauges for Process Measurements

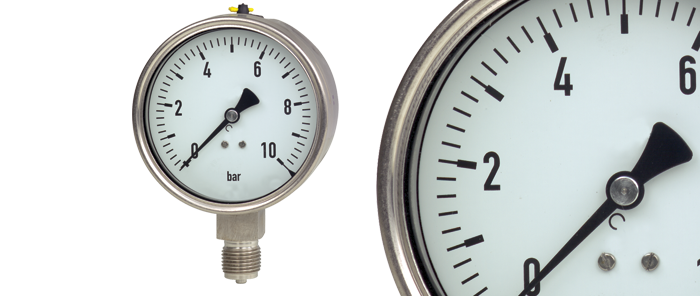

This Bourdon Tube stainless steel pressure gauge is an ideal choice for measuring pressure values in gaseous and liquid aggressive media. It is available with either a back or a bottom entry and is ideal for use in chemical/petro-chemical, power stations, mining and offshore environments as well as other industrial applications. It has a clearly visible white dial and a stainless steel case.

1/2” BSPP connection thread
Accuracy Class: 1.0
All Stainless Steel construction
100mm white dial with black pointer

Operating temperature of medium: 100°C max (ambient -20°C to +60°C)
Working Pressure:
Steady: full scale value
Fluctuating: 0.9 x full scale value
Short time: 1.3 x full scale value

Pressure Gauge Enquiry Form

This pressure gauge is available to buy online. However, if you have a particular application that you require advice on or a question relating to this product, please use the form below to contact us. Alternatively please email us with your requirements or call one of our experienced engineers on 01895 252222.
