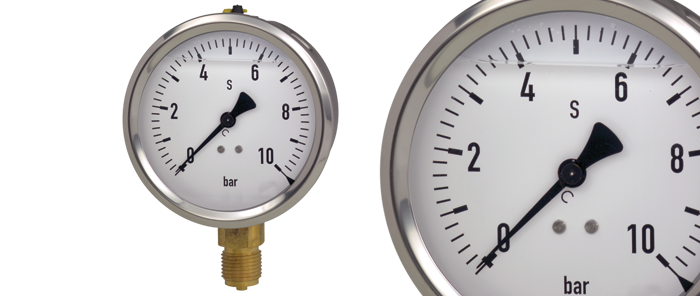

63mm Glycerine Filled High Dynamic Pressure Gauge

Pressure Gauges for Process Measurements

This Bourdon Tube pressure gauge is an ideal choice for measuring points with high dynamic or pulsating pressure in any gaseous or liquid media that will not attack the copper alloy parts or obstruct the pressure system. It is available with either a back or a bottom entry and is ideal for use in hydraulics, compressors and shipbuilding applications as well as other industrial processes. It has a clearly visible white dial and with a stainless steel case, is of especially sturdy design.

1/4” BSPP connection thread
Accuracy Class: 1.6
Glycerine filled for dynamic pressure pulsations
63mm white dial with black pointer

Operating temperature of medium: 60°C max (ambient 0°C to +60°C)
Working Pressure:
Steady: 3/4 of full scale value
Fluctuating: 2/3 of full scale value
Short time: Full scale value

Pressure Gauge Enquiry Form

This pressure gauge is available to buy online. However, if you have a particular application that you require advice on or a question relating to this product, please use the form below to contact us. Alternatively please email us with your requirements or call one of our experienced engineers on 01895 252222.
