Standard Thermocouple Plug - R11

Standard Thermocouple Connectors rated to 220ºC

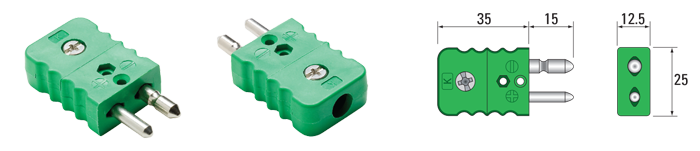

IEC Type K Thermocouple Plug illustrated (R11K-I)

Send Enquiry Buy Online Request Info Connector Catalogue

IEC Colours			ANSI Colours
Part No.	Type	Colour	Part No.	Type	Colour
R11K-I	K		R11K-A	K
R11T-I	T		R11T-A	T
R11J-I	J		R11J-A	J
R11N-I	N		R11N-A	N
R11RS-I	R/S		R11RS-A	R/S
R11E-I	E		R11E-A	E
R11B-I	B		R11B-A	B
R11CU	Cu		R11CU	Cu

Standard Thermocouple Plug with Thermoplastic body rated to 220ºC
Available for thermocouple types: K, T, J, N, R/S, E, B and Cu
Body colour coded and thermocouple type indicated on body
Easy wiring via lipped washer
Accepts stranded or solid wires up to 0.2mm to 1.29mm diameter (0.03mm² to 1.3mm²). With washer removed: up to 1.63mm diameter (2.1mm²).

Manufactured in accordance with standard EN 50212
High purity thermocouple alloys used for male pin and female socket constructions
Polarised round pins with mechanism to prevent accidental output
Single captive screw for quick assembly

Related Thermocouple Plugs and Sockets

Standard
Thermocouple Socket

Part Code: R20 Standard Panel Socket - Rectangle Flanged & Bracket

Part Code: R29 Standard Panel Socket - Lugged - Closed Back

Part Code: R30 Standard Panel Socket - Round Flanged

Part Code: R32 Standard Panel Plug -
Lugged

Part Code: R37 Miniature
Thermocouple Plug

Part Code: F11

Connector Enquiry Form

R11 Thermocouple Type

Colour Code

Quantity Required

Qty Required

Contact Details

Company Name

Your Name

Title/Dept.

Email

Telephone

Additional Information

If your enquiry is for more than one style of connector, please email us with your requirements or use the box below

Send Enquiry

We will only use your email address to contact you. We will never give your email address to 3rd parties and we do not sell data on to any other company. We prefer to concentrate on making quality temperature related products. Our privacy policy can be viewed here.

Frequently Asked Questions

What are thermocouple connectors, and why are they important?
Thermocouple connectors are used to connect thermocouples to measurement devices or other equipment. They provide a reliable connection for transmitting the temperature signal from the sensor while ensuring accurate and consistent readings. The choice of connector material and temperature rating is crucial to ensure that the connector performs well in various environments, especially at high temperatures.
What are the different temperature ratings available for your thermocouple connectors?
We offer thermocouple connectors in three temperature ratings: 220ºC, 350ºC, and 650ºC. The temperature rating you need will depend on the maximum temperature the connector reaches. For most applications, the 220ºC rated connector is suitable, while for more demanding applications with higher ambient temperatures, the 350ºC or even 650ºC ceramic connectors are better suited.
Do you offer accessories for thermocouple connectors?
Yes, we offer a wide range of accessories for thermocouple connectors, including sensor and cable supports and adaptors, mounting brackets and protective covers. These accessories are designed to enhance the functionality and reliability of our thermocouple connectors, ensuring ease of installation and long-lasting performance. If you need specific recommendations, feel free to contact our engineers for assistance.
What is a thermocouple connector panel?
A thermocouple connector panel is a centralised unit designed to house multiple thermocouple connectors, allowing for organised and efficient connection of multiple thermocouple sensors to measurement equipment. It streamlines the wiring process and ensures secure, reliable connections in applications requiring multiple thermocouples. Available in both aluminium and stainless steel, these panels come in various configurations and capacities to suit different needs.

1	Thermocouple Type	Temperature Range (continuous)	Temperature Range (short term)
K	Nickel Chromium vs Nickel Aluminium	0°C to +1100°C	-180°C to +1350°C
T	Copper vs Constantan	-185°C to +300°C	-250°C to +400°C
J	Iron vs Constantan	+20°C to +700°C	-180°C to +750°C
N	Nicrosil vs Nisil	0°C to +1100°C	-270°C to +1300°C
E	Nickel Chromium vs Constantan	0°C to +800°C	-40°C to +900°C
R	Platinum - 13% Rhodium vs Platinum	0°C to +1600°C	-50°C to +1700°C
S	Platinum - 10% Rhodium vs Platinum	0°C to +1550°C	-50°C to +1750°C
B	Platinum - 30% Rhodium vs Platinum 6% Rhodium	+100°C to +1600°C	+100°C to +1820°C
Temperature ranges refer to the operating range of the thermocouple type. The temperature range of the connector will be as stated. Please refer to the product description for more details.
