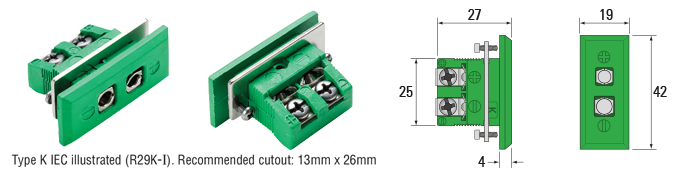

Standard Thermocouple Panel Socket - Rectangle Flanged & Bracket - R29

Standard Thermocouple Connectors rated to 220ºC

Send Enquiry Buy Online Request Info Connector Catalogue

IEC Colours			ANSI Colours
Part No.	Type	Colour	Part No.	Type	Colour
R29K-I	K		R29K-A	K
R29T-I	T		R29T-A	T
R29J-I	J		R29J-A	J
R29N-I	N		R29N-A	N
R29RS-I	R/S		R29RS-A	R/S
R29E-I	E		R29E-A	E
R29B-I	B		R29B-A	B
R29CU	Cu		R29CU	Cu

Thermoplastic body rated to 220ºC
Available for thermocouple types: K, T, J, N, R/S, E, B and Cu
Body colour coded and thermocouple type indicated on body
Easy wiring via lipped washer
Accepts stranded or solid wires up to 0.2mm to 1.29mm diameter (0.03mm² to 1.3mm²). With washer removed: up to 1.63mm diameter (2.1mm²).

Manufactured in accordance with standard EN 50212
High purity thermocouple alloys used for male pin and female socket constructions
Polarised round pins with mechanism to prevent accidental output
Single captive screw for quick assembly
