Leaf Thermocouple (Type 10LT)

Plastics Industry Thermocouples

Send Enquiry Buy Online Request Info Data Sheet

Related Products

Multi Thermocouple Indicator

Related Products

Hand Held 4 Channel Datalogger with Bluetooth

Related Products

Miniature Socket

Related Products

Standard Socket

This sensor has a fast response thermocouple mounted on a stainless steel shim which allows it to be welded, soldered or placed under banding on a variety of surfaces including nozzle or band heaters. Supplied with stainless steel braided fibreglass cable.

Thermocouple types J, K, T or N, grounded junction

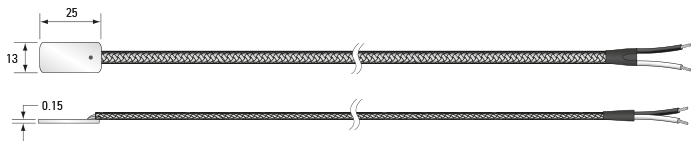

Stainless Steel leaf dimensions: 13mm x 25mm x 0.15mm thick
Leads: Stainless Steel braided Fibreglass
Operating range -30°C to +350°C
