Miniature Autoclave Thermocouple (Type 9C)

Pharmaceutical Thermocouples

Send Enquiry Buy Online Request Info Data Sheet

Related Products

Feedthroughs for single elements

Related Products

Standard Plug

Related Products

Standard Socket

Related Products

Miniature Plug

Related Products

Miniature Socket

These miniature thermocouples are designed for general purpose applications in and around the autoclave and steriliser. These thermocouples are supplied with a PTFE insulated 'Single Shot' cable.

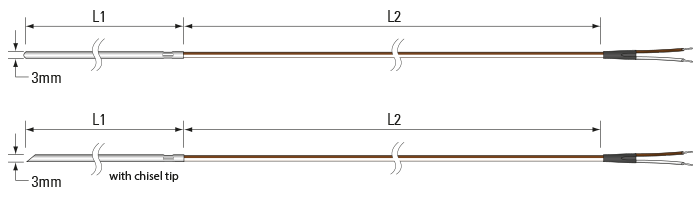

A plain (rounded) tip is available as standard with the option of having a chisel tip for perforating plastic bags etc.

Miniature Autoclave Thermocouple (Type 9C) Enquiry Form

1. Thermocouple Type

2. Sheath Diam.

mm

3. Sheath Length 'L1'

mm

4. Types of Sensing Junction

Illustration	Select
INSULATED Junction
GROUNDED Junction
Duplex Element Required? (please tick box)
Triplex Element Required? (please tick box)

5. Cable Length 'L2'

mtrs*

6. Optional Thermocouple Plug

7. Optional Chisel Tip

8. Quantity Required

Qty Required

Contact Details

Company Name

Your Name

Title/Dept.

Email

Telephone

Additional Information

If your enquiry is for more than one style of sensor, please email us with your requirements or use the box below

Send Enquiry

We will only use your email address to contact you. We will never give your email address to 3rd parties and we do not sell data on to any other company. We prefer to concentrate on making quality temperature related products. Our privacy policy can be viewed here.

1	Thermocouple Type	Temperature Range (continuous)	Temperature Range (short term)
K	Nickel Chromium vs Nickel Aluminium	0°C to +1100°C	-180°C to +1350°C
T	Copper vs Constantan	-185°C to +300°C	-250°C to +400°C
Temperature ranges refer to the thermocouple type. The temperature range of the sensor may deviate from the above, please refer to the product description for more details
