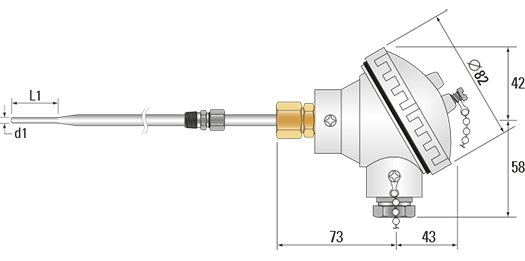

Swaged Thermocouple with Standard IP67 die cast alloy head

Swaged Tip Thermocouples

Send Enquiry Buy Online Request Info Data Sheet

Related Products

Thermocouple Linearised Head Mounting Transmitter

Compression Fittings

Mineral insulated thermocouple sensors have a high integrity construction, suited to arduous operating conditions at temperatures from -200ºC to +1400ºC. (The maximum operating temperature is dependant on diameter and environmental factors, further guidance is available here.)
Custom built to your specification and terminated in a heavy duty weatherproof die cast alloy, epoxy coated, screw top terminal head with the tube entry and cable entry at a right angle to each other, with a ceramic terminal block. Suitable for simplex, duplex and triplex assemblies. Supplied with a 20mm x 1.5mm ISO metal pinch gland on the cable entry for cables from 6mm to 14mm diameter
Alternatively, we have a large range of sensors available to buy online in various diameters and lengths

Rugged large diameter whilst a low thermal mass reduced tip provides a fast response
The process of swaging increases the strength of the sheath by enhancing the grain structure during forming
Available in thermocouple types K, T, J, N, E, R, S & B in lengths from a few millimetres to 200 metres or more dependent on the sheath diameter selected
