Thermocouple Transmitters

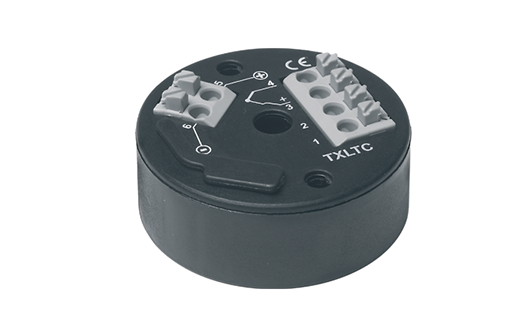

Thermocouple Head Mounting Linearised Transmitter

Thermocouple Transmitter - Head Mounting

Request a Quote Buy Online from TC Direct

TC - Trusted by UK manufacturers, OEMs, and research labs for over 50 years.

Related Products

Mineral Insulated Thermocouples
with Standard IP67 die cast alloy head

Mineral Insulated Thermocouples
with alloy straight through head

Technical Features – Input
Input Impedance : 10MΩ
Cold Junction Compensation : -40..100 ±1.5°C, settable
Sensor Fault Detection : Yes, settable

Technical Features – Output/Power Supply
Operating Voltage : 7-30V DC
Current output : 4~20mA, 20~4mA (2 wire)
Load resistance : 1 kΩ @ 26 V DC, 21 mA
Resolution : 2 μA (>13 bits)
Output in case of over-range : 102,5% of full scale value
Output in case of fault : 105% of full scale value
Current output protection : approximately 30mA

Standards
EN61000-6-4/2002-10 (electromagnetic emission, industrial surroundings)
EN61000-6-2/2006-10 (electromagnetic immunity, industrial surroundings)

Other Features
Network freq. Rejection : 50 Hz and 60 Hz (settable, min. 60dB)
Error caused by EMI (*) : < 0,5%
Sampling Time : 300 ms
Response time (10..90 %) : < 620 ms (with 50/60 Hz Rejection)
Protection Index : IP20
Sensor Fault Detection : Yes
Box : Nylon / glass, (black colour)
Dimensions : 20.0 mm x 40.0 mm
Operating Conditions : Temperature -40 - +85 °C
Humidity 30 - 90% at 40°C
(non-condensing)
Altitude: up to 2000 m.a.s.l
Storage Temperature : -40 - +105 °C
Connections : Spring terminals
Conductor Section : 0,2..2,5 mm²
Wire stripping : 8 mm

Input and Range Table

	Input	Range °C	Calibration Error	EMI	Min Span °C	Resolution	Standard
Thermocouple	J	-210... 1200	0.1%	<0.5%	50	6uV	IEC 60584
	K	-200... 1372	0.1%	<0.5%	50	6uV	IEC 60584
	R	-50... 1765	0.1%	<0.5%	100	6uV	IEC 60584
	S	-50... 1765	0.1%	<0.5%	100	6uV	IEC 60584
	T	-200... 400	0.1%	<0.5%	50	6uV	IEC 60584
	B	0... 1820	0.1%	<0.5%	100	6uV	IEC 60584
	E	-200... 1000	0.1%	<0.5%	50	6uV	IEC 60584
	N	-200... 1300	0.1%	<0.5%	50	6uV	IEC 60584

Table of Accuracy (The sum of A+B or C, whichever is greater)

Input	A: % of measure	B: % of Span	C: Minimum (°C)
Thermocouple J, K, T, N, E	0.05	0.05	0.5
Thermocouple B, R, S	0.05	0.05	1.0

Temperature Coefficient	0.005% / °C
