Accessories for Miniature Connectors

F89 Internal Crimp/Braze Adaptor

Send Enquiry Buy Online Request Info Connector Catalogue

Related Products

Miniature Plug

Miniature High Temperature Plug

Miniature Plug - Three Pin

Miniature Socket

Miniature High Temperature Socket

Miniature Socket - Three Pin

Miniature Panel Socket - Lugged - Closed Back

Miniature Panel Socket - Lugged - Three Pin

Miniature Panel Socket - Round Flanged

Miniature Plug - Duplex

Application
This adaptor can be crimped onto a mineral insulated cable or metal tube so it may then be attached to a miniature connector.
A crimp tool is available.
Stainless steel adaptors may also be brazed. Brass adaptors can also be used to crimp some soft materials such as PVC or PFA wires and cables.

Construction
For 220°C and 350°C range connectors: Nickel Plated Brass, Brass or Stainless Steel.
For Ceramic connectors: Stainless Steel only.

Notes

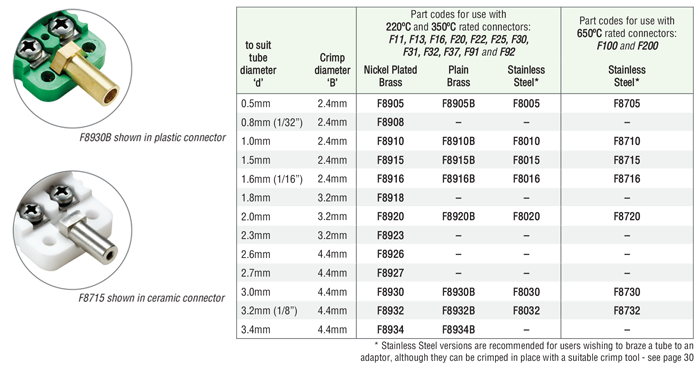

Bore diameters listed are supplied at ‘d’ +0.1mm.
