Melt Bolt Thermocouple (Type 4M)
Plastics Industry Thermocouples
Related Products
Standard Socket

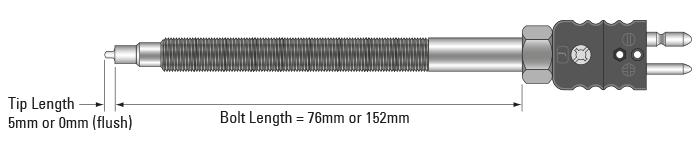

These robust melt bolt sensors have been designed to withstand the high pressures found within the nozzles of plastics extruders and injection moulding machines where they are used in order to measure the temperature of the molten medium. Available as standard in either 76mm or 152mm bolt lengths with either a 5mm long or flush sensing tip length. Available in thermocouple types K, T, J, N and they have an insulated junction and are terminated in a standard round pin thermocouple plug. Suitable for use up to 600ºC (at tip) with a bolt thread size of 1/2 inch UNF20, 303 stainless steel.
Frequently Asked Questions
- What is a thermocouple and how does it work?
A thermocouple is a type of temperature sensor that generates a voltage when two different metals are joined at one end and exposed to a temperature difference between the "hot" junction (where the temperature is measured) and the "cold" junction (the reference point). This voltage is then measured to determine the temperature at the hot junction. - How do I choose the right thermocouple for my application?
The ideal thermocouple depends on factors such as temperature range, accuracy, termination type, mounting requirements and environmental conditions. We offer a variety of thermocouples with different sheath materials, constructions, terminations, and temperature ratings to meet your needs. If you need specific advice, our engineers are happy to assist! - What is the maximum temperature rating of your thermocouples?
Our thermocouples are designed to handle a wide range of temperatures with some mineral insulated thermocouples able to withstand temperatures up to 1400ºC and ceramic sheathed thermocouples going even higher to 1600ºC. Each product listing includes the maximum temperature rating, so you can choose the best thermocouple for your application.
