Patch Thermocouples (Type 10)

General Purpose Thermocouples

Send Enquiry Buy Online Request Info

Related Products

Multi Thermocouple Indicator

Hand Held 4 Channel Datalogger with Bluetooth

Miniature Socket

Standard Socket

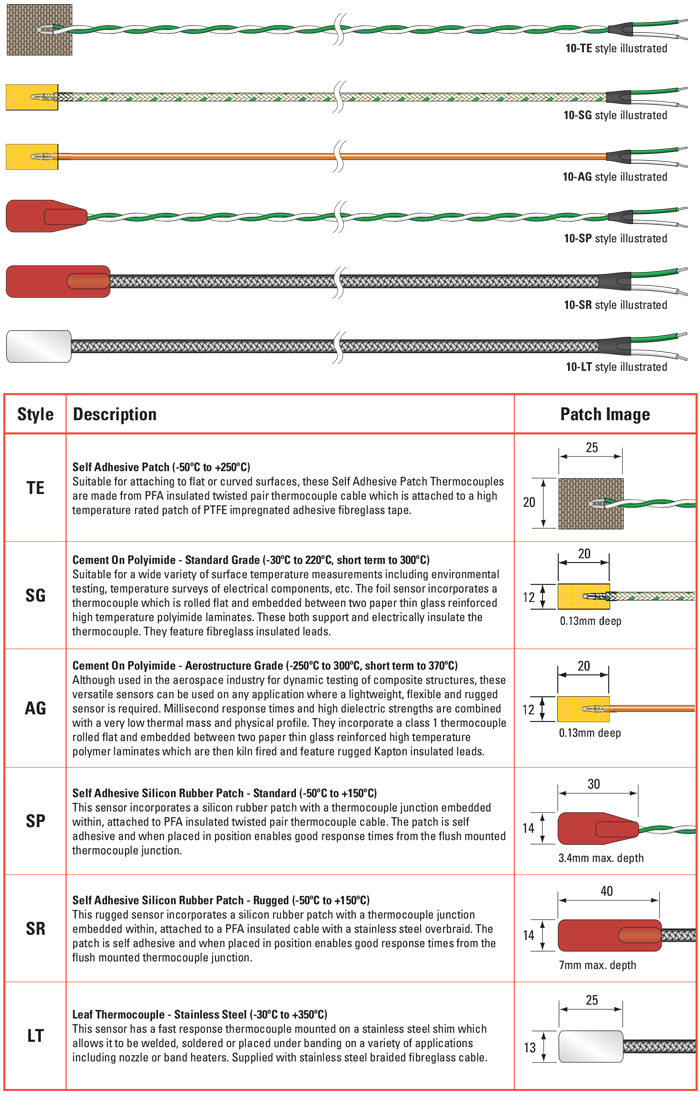

These patch sensors are suitable for a wide range of surface temperature measurement applications and are available in thermocouple types K, T, J, N or E as standard.

Patch Thermocouple Enquiry Form

1. Thermocouple Type

2. Style Number

3. Overall Length

mtrs*

4. Optional Thermocouple Plug

5. Quantity Required

Qty Required

Contact Details

Company Name

Your Name

Title/Dept.

Email

Telephone

Additional Information

If your enquiry is for more than one style of sensor, please email us with your requirements or use the box below

Send Enquiry

We will only use your email address to contact you. We will never give your email address to 3rd parties and we do not sell data on to any other company. We prefer to concentrate on making quality temperature related products. Our privacy policy can be viewed here.

1	Thermocouple Type	Temperature Range (continuous)	Temperature Range (short term)
K	Nickel Chromium vs Nickel Aluminium	0°C to +1100°C	-180°C to +1350°C
T	Copper vs Constantan	-185°C to +300°C	-250°C to +400°C
J	Iron vs Constantan	+20°C to +700°C	-180°C to +750°C
N	Nicrosil vs Nisil	0°C to +1100°C	-270°C to +1300°C
E	Nickel Chromium vs Constantan	0°C to +800°C	-40°C to +900°C
Temperature ranges refer to the thermocouple type. The temperature range of the sensor may deviate from the above, please refer to the product description for more details
