Washer Thermocouple (Type 19)

Plastics Industry Thermocouples

Send Enquiry Buy Online Request Info Data Sheet

Related Products

Multi Thermocouple Indicator

Related Products

Hand Held 4 Channel Datalogger with Bluetooth

Related Products

Miniature Socket

Related Products

Standard Socket

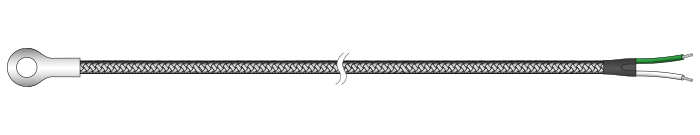

These washer sensors which are available in thermocouple types K, T, J, E and N are suitable for surface temperature monitoring of platens, pipes and vessels etc. up to a maximum operating temperature of 400°C. The crimp washers are made from plated brass and are available in the following sizes; 0BA/M6, 2BA/M5, 3BA/M4, 4BA/M3.5, 6BA/M3, M8 and M12. The extension leads are made from stainless steel braided fibreglass cable and are then grounded to the washer.

Washer Thermocouple Enquiry Form

1. Thermocouple Type
2. Washer Thread Size

3. Cable Length

 mtrs
4. Optional Thermocouple Plug

5. Quantity Required

Contact Details

Company Name


Your Name


Title/Dept.


Email


Telephone


Additional Information

If your enquiry is for more than one style of sensor, please email us with your requirements or use the box below



Send Enquiry

We will only use your email address to contact you. We will never give your email address to 3rd parties and we do not sell data on to any other company. We prefer to concentrate on making quality temperature related products. Our privacy policy can be viewed here.
1 Thermocouple Type Temperature Range (continuous) Temperature Range
(short term)
K Nickel Chromium vs
Nickel Aluminium		 0°C to +1100°C -180°C to +1350°C
T Copper vs Constantan -185°C to +300°C -250°C to +400°C
J Iron vs Constantan +20°C to +700°C -180°C to +750°C
N Nicrosil vs Nisil 0°C to +1100°C -270°C to +1300°C
E Nickel Chromium vs Constantan 0°C to +800°C -40°C to +900°C
Temperature ranges refer to the thermocouple type.
The temperature range of the sensor may deviate from the above,
please refer to the product description for more details
