Bayonet Thermocouple - Mineral Insulated (Type 11A)

Plastics Industry Thermocouples

Send Enquiry Buy Online Request Info Data Sheet

Related Products

Standard Socket

Related Products

Miniature Socket

Suitable for plastics machinery and general purpose applications these mineral insulated bayonet sensors are available in thermocouple types K, T, J, N and E with an industry standard one slot adjustable bayonet cap fitting. The fitting can be fine tuned for positioning on site and is suitable where several applications in your plant require individual positioning of the assembly. The sensor is mineral insulated with a diameter of 4.5mm as standard but a 3.0mm option is available and rated to 800°C and can therefore be bent after installation for exact positioning. A choice of leads is available including stainless steel braided cable or flexible stainless steel conduit. As with any mineral insulated thermocouple the junction can be grounded or insulated.

Bayonet Thermocouple Enquiry Form

1. Thermocouple Type

2. Sheath Diameter

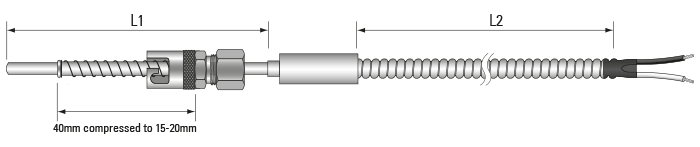

3. Sheath Length 'L1'

mm

4. Cable Style

5. Cable Length 'L2'

mtrs*

6. Type of Sensing Junction

Illustration	Select
INSULATED Junction
GROUNDED Junction
Duplex Element Required? (please tick box)
Triplex Element Required? (please tick box)

7. Optional Thermocouple Plug

8. Quantity Required

Qty Required

Contact Details

Company Name

Your Name

Title/Dept.

Email

Telephone

Additional Information

If your enquiry is for more than one style of sensor, please email us with your requirements or use the box below

Send Enquiry

We will only use your email address to contact you. We will never give your email address to 3rd parties and we do not sell data on to any other company. We prefer to concentrate on making quality temperature related products. Our privacy policy can be viewed here.

1	Thermocouple Type	Temperature Range (continuous)	Temperature Range (short term)
K	Nickel Chromium vs Nickel Aluminium	0°C to +1100°C	-180°C to +1350°C
T	Copper vs Constantan	-185°C to +300°C	-250°C to +400°C
J	Iron vs Constantan	+20°C to +700°C	-180°C to +750°C
N	Nicrosil vs Nisil	0°C to +1100°C	-270°C to +1300°C
E	Nickel Chromium vs Constantan	0°C to +800°C	-40°C to +900°C
Temperature ranges refer to the thermocouple type. The temperature range of the sensor may deviate from the above, please refer to the product description for more details
